Integrating Invicti Enterprise with GitHub

This document is for:
Invicti Enterprise On-Demand, Invicti Enterprise On-Premises

GitHub is a web-based hosting service for version control. GitHub is mostly used for code, but it has an issue tracking feature with labels, milestones, assignees, and a search engine.

Every issue is referenced in a card, which can then be dropped into a repository, used to track the progress of the bug, discuss fixes, and assign relevant tasks to team members.

This topic explains how to configure Invicti Enterprise to send a detected vulnerability to GitHub.

For further information, see What Systems Does Invicti Integrate With?.

GitHub Fields

This table lists and explains the GitHub fields in the New GitHub Integration window.

Button/Section/Field

Description

Name

This is the name of the configuration that will be shown in menus.

Mandatory

This section contains fields that must be completed.

Server URL

This is the GitHub server’s project URL. Change it for GitHub Enterprise (On-Premise).

Repository

This is the repository name, which includes the issue.

Username

This is the name of the user. If you are using a personal access token (see below), leave this field blank.

Personal Access Token

This is a token that is used for authorization.

Title Format

This is the string format that is used to create the vulnerability title.

Optional

This section contains optional fields.

Labels

These are the issue labels.

Assignee

This is the user to whom the issue is assigned.

Organization

This is the organization’s name.

How to Integrate Invicti Enterprise with GitHub

  1. Log in to Invicti Enterprise.

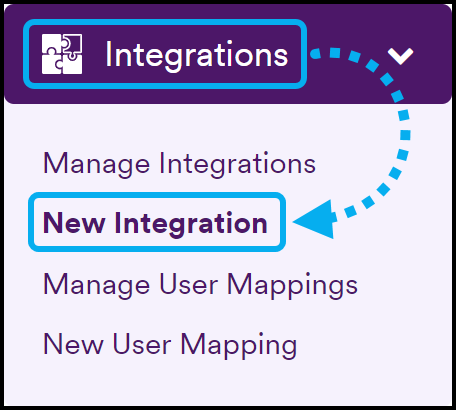

  2. From the main page, go to Integrations > New Integration.

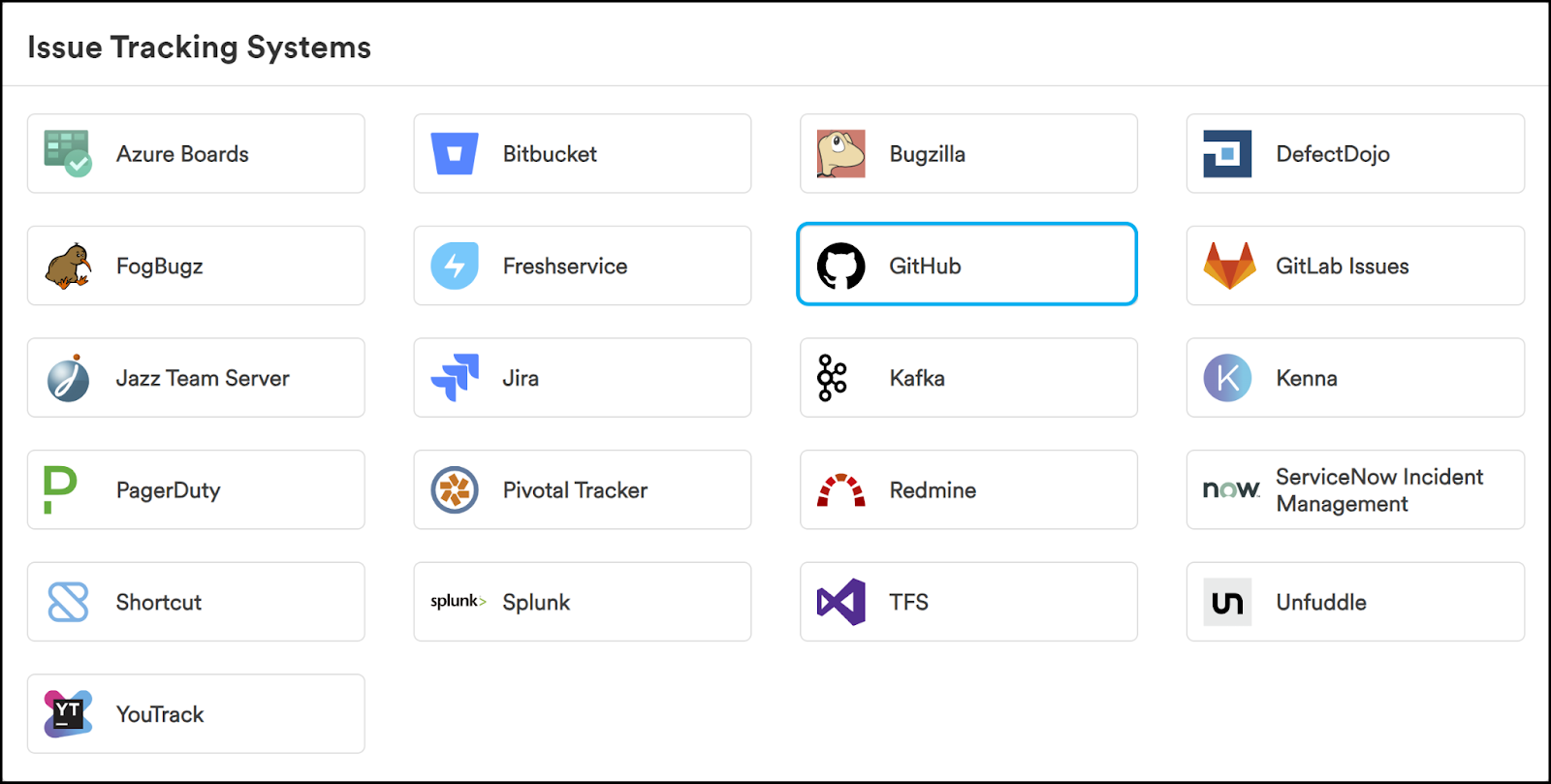

  1. From the Issue Tracking Systems section, select GitHub.

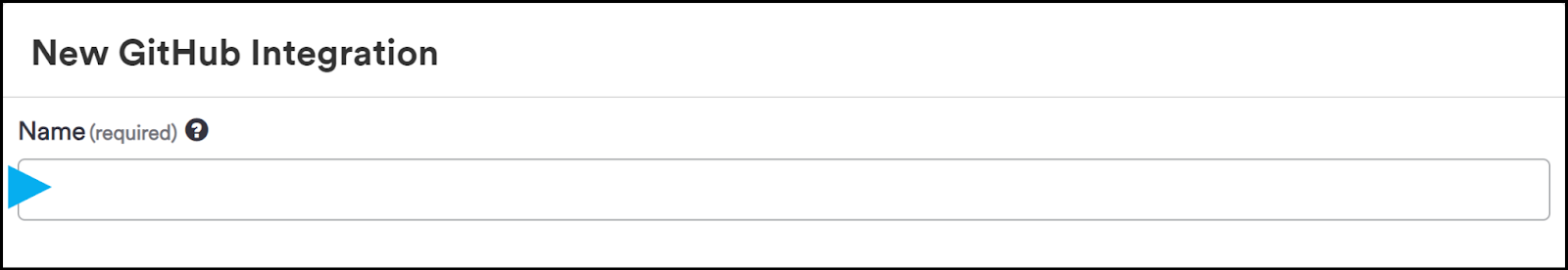

  1. In the Name field, enter a name for the integration.

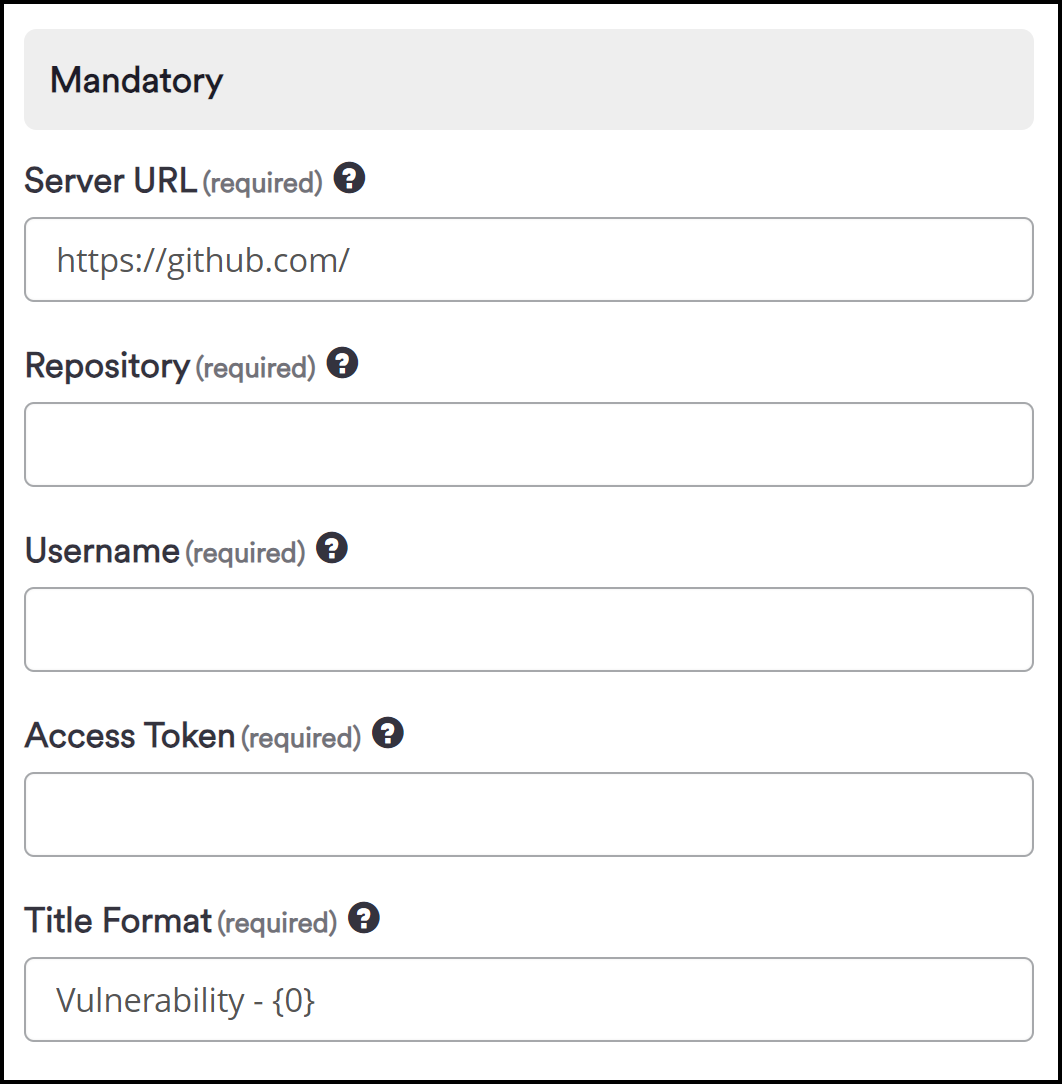

  2. In the Mandatory section, complete the connection details:
  • Server URL (Github/Github Enterprise Server URL)
  • Repository
  • Username
  • Personal Access Token
  • Title Format

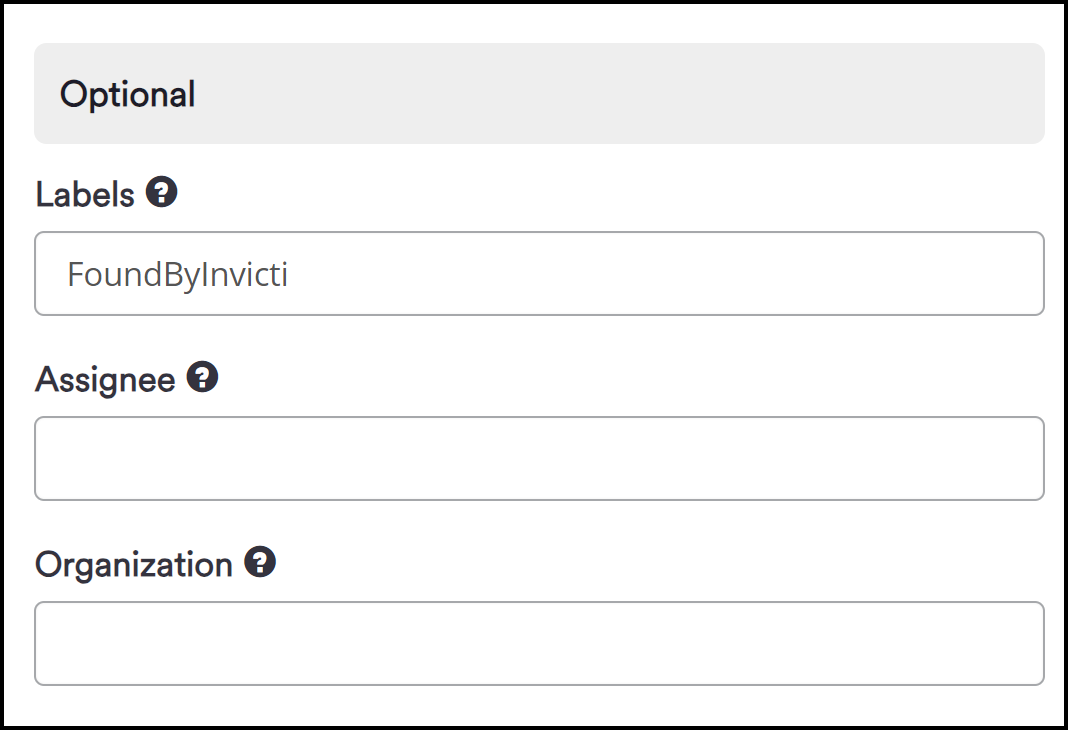

  1. In the Optional section, complete as required.
  • If the Organization name is entered, issues will be sent to that organization’s repository.

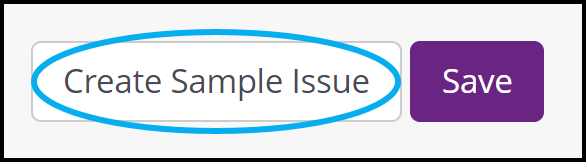

  1. Select Create Sample Issue to confirm that Invicti Enterprise can connect to the configured system. A confirmation message is displayed to confirm that the sample issue has been successfully created.

In the confirmation message, select the Issue number link to open the issue in your default browser.

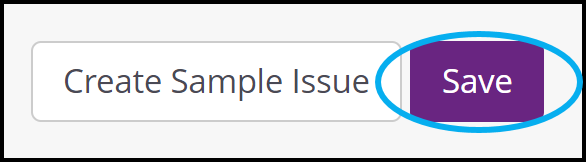

  1. Select Save to save the integration.

How to Export Reported Vulnerabilities to Projects in GitHub

There are several ways to send issues to GitHub with Invicti Enterprise:

  • From the main menu, select Issues > All Issues.
  • From the Issues page, select one or more issues you want to send.
  • Select Send To > GitHub.

A pop-up is displayed, with a link to the issue you have sent to GitHub. If there is no error, this information will be displayed instead.

  • You can send an issue from the Recent Scans window:
  • From the main menu, select Scans > Recent Scans.
  • Next to the relevant scan, select Report.

If you have previously submitted this vulnerability to GitHub, it will already be accessible. You cannot submit the same issue twice.
