Deploying Invicti Shark agent for Java – Windows
Invicti Shark enables you to carry out interactive security testing (IAST) in your web application in order to confirm more vulnerabilities and further minimize false positives. For Invicti Shark to operate, you need to download an agent and deploy it on your server. Please note that this agent is generated uniquely for each target website for security reasons.
This topic explains how to download and install Invicti Shark to a Java web application.
Invicti Shark for Java requires Tomcat (7+) and Java (1.7+). Current testing is with Tomcat 9 and Java 1.8.
This document assumes that you will be using version 1.9.5 (latest at the time of writing) of AspectJWeaver.
Deploying Invicti Shark in Java consists of 3 steps:
1. Deploying AspectJWeaver into your web application
- Download AspectJWeaver: https://repo1.maven.org/maven2/org/aspectj/aspectjweaver/1.9.5/aspectjweaver-1.9.5.jar
- From the download folder, select aspectjweaver-1.9.5.jar and rename it aspectjweaver.jar
- Copy aspectjweaver and paste it intoC:\Program Files (x86)\Apache Software Foundation\Tomcat 9.0/lib
2. Deploying Shark into your web server
- Download the Invicti Shark JAVA from Invicti
- Copy the Invicti Shark JAVA (Shark.jar) to %TOMCAT-HOME%\lib
- If installing on Windows where Tomcat 9 was installed using the official “32-bit/64-bit Windows Service Installer”, copy the Shark.jar file to C:\Program Files (x86)\Apache Software Foundation\Tomcat 9.0\lib
3. Configuring Tomcat to use AspectJWeaver and Shark
- Launch Tomcat with Load Time Weaving enabled. This can be done by adding a -javaagent parameter with the path to aspectjweaver.jar when launching Tomcat, and optionally a parameter to enable the Shark debug logging.

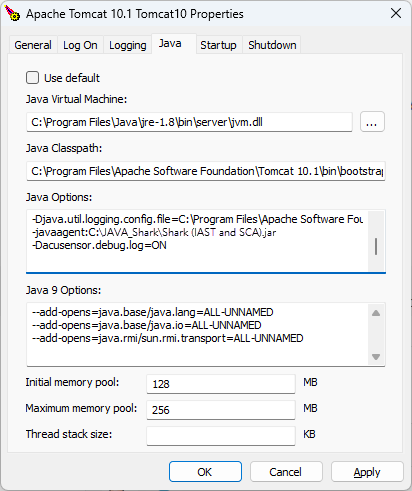

- Add two parameters into the Apache Tomcat Configuration > Java options tab
- -javaagent: C:\Program Files (x86)\Apache Software Foundation\Tomcat 9.0\lib\aspectjweaver.jar (mandatory; adjust path depending on where you deployed the aspectjweaver.jar file)
- -Dacusensor.debug.log=ON (optional; enables debug logging and should only be used for troubleshooting)
- Restart the Tomcat service
The parameter “-Dacusensor.debug.log=ON” is optional and can be omitted. If this parameter is retained, this will output the Shark logging as additional lines in the Tomcat logs starting with “[Invicti-debug]”.
Disabling and Removing Invicti Shark for Java
To remove and disable the sensor from your website, you need to revert the changes done during the deployment of the Agent.
- Remove the Invicti Shark (Shark.jar) from the folder where it was deployed
- Remove aspectjweaver.jar from the folder where it was copied to
- Reconfigure Tomcat with Load Time Weaving disabled, as follows:
- Remove the -javaagent and -Dacusensor.debug.log parameters in the Apache Tomcat Configuration > Java options tab
- Restart the Tomcat service
Although the Invicti Shark agent is secured with a strong password, it is recommended that the Shark client files are uninstalled and removed from the web application if they are no longer in use.
